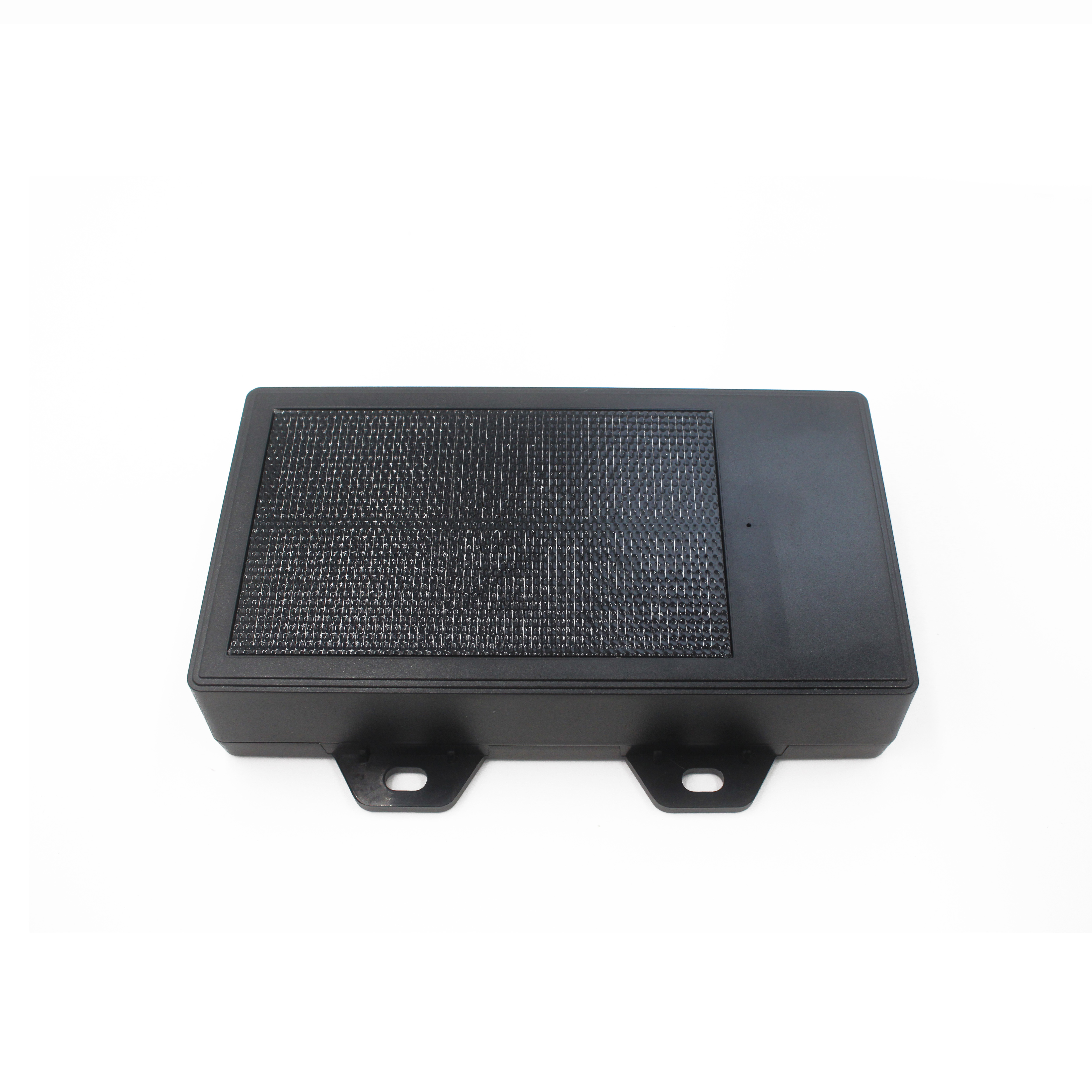

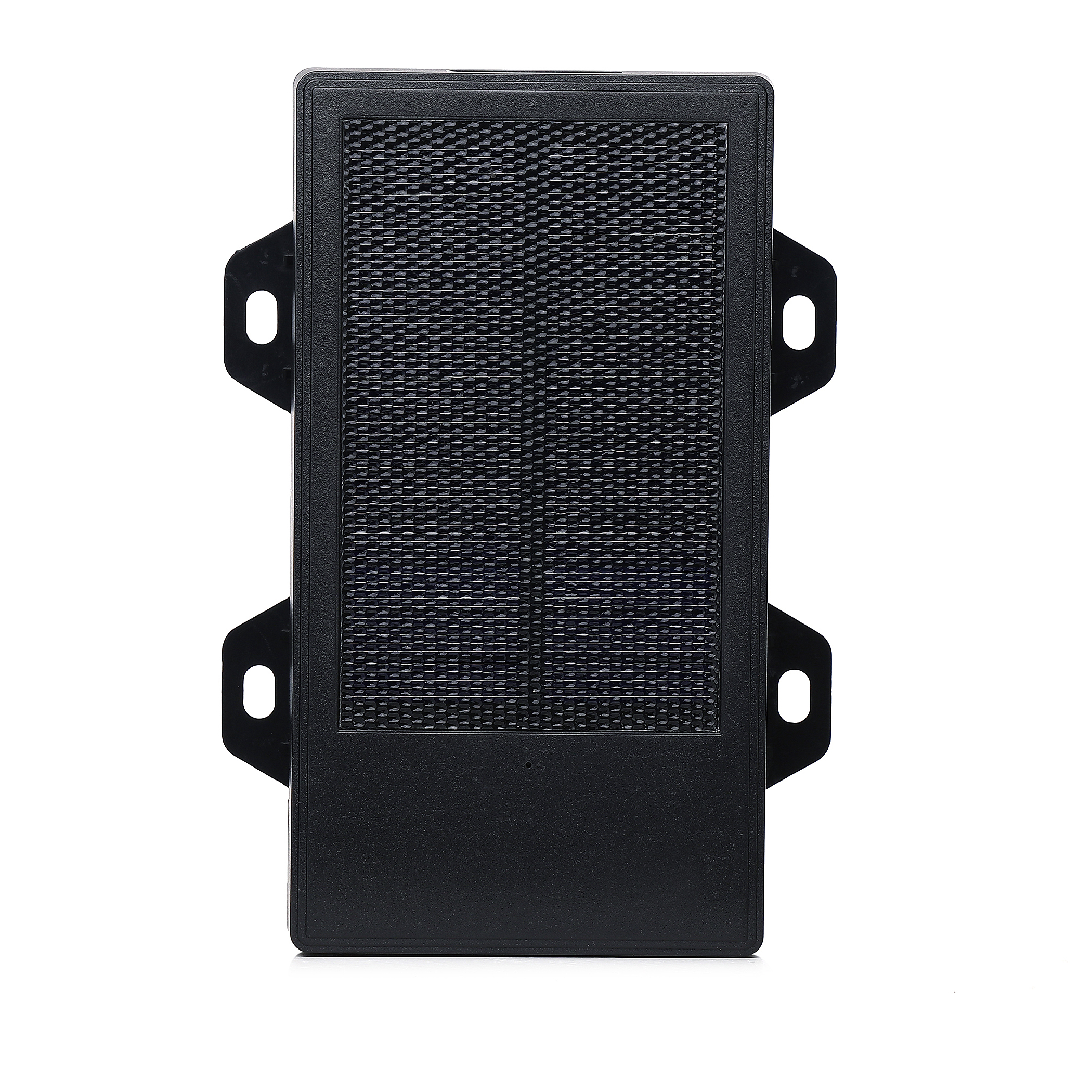

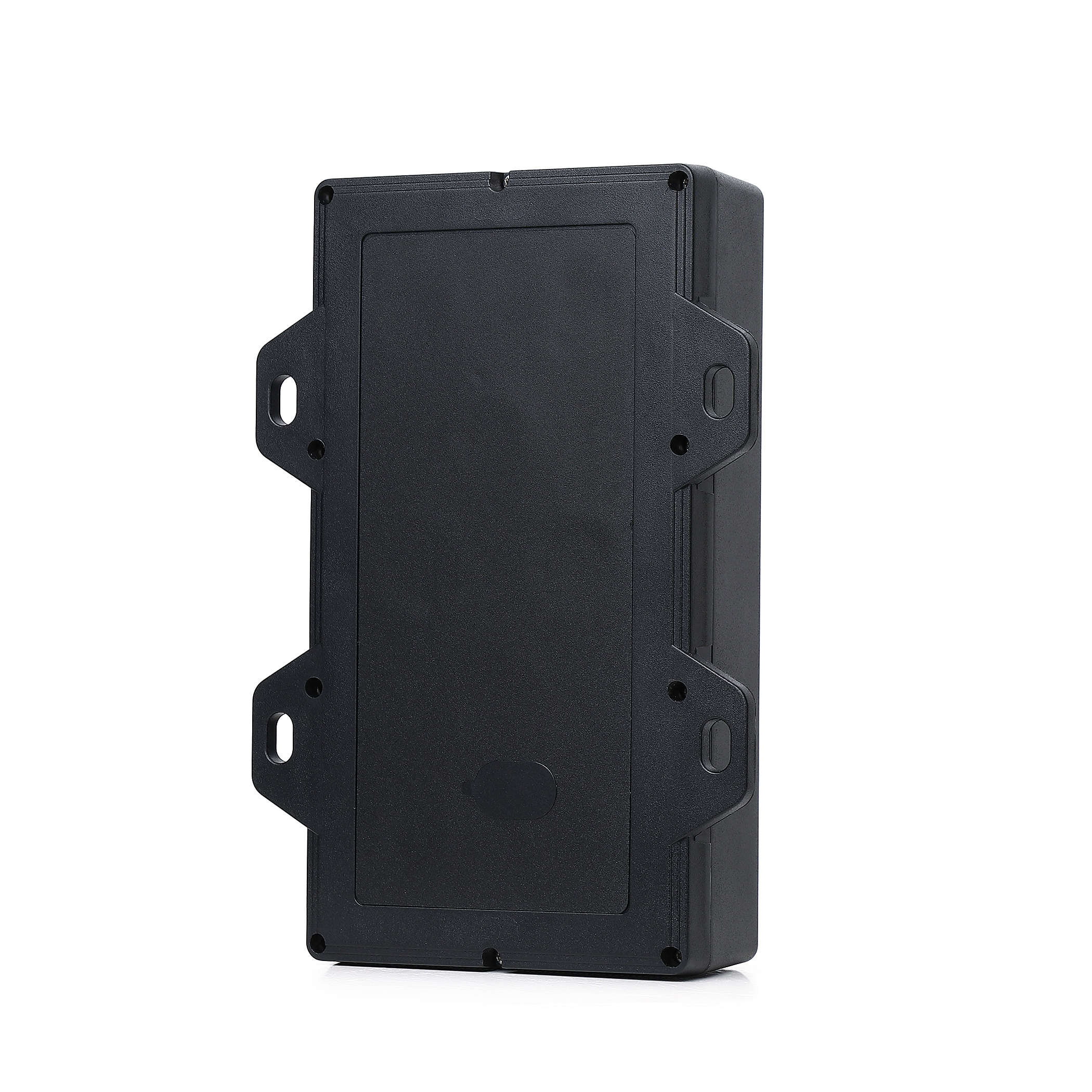

GF70L-Solar Magnetic Asset GPS Tracker

GF70L is a rechargeable GPS tracker with 12000mAh battery. It contains highly efficient solar conersion panels.

-Main Features:

12000mah rechargeable battery
Anti-scratch Solar Panels
Strong Magnetic 0 installation
Option Microphone for remote detection
Geo-fence/Low battery/vibration alarms
Realtime tracking/Timing tracking/Smart Tracking

Project Details

Asset tracker is a rechargeable GPS tracker with strong magnets and long standby battery. Only need insert Sim card, it will upload GPS location based on movement or preset frequency automatically. With a mini microphone built-in, device also support one way calling remotely.

Specs

Model GF40 694320cm Model G200 694320cm Model GF60 1208329cm Model GF70 1528335cm	3000mAh 2G 5000mAh 2G, Anti-Removal alarm 10000mAh 2G or 4G, Anti-Removal alarm 12000mAh 2G or 4G, Anti-Removal alarm,Solar Panel
GSM Specification
2G GSM frequency	850/900/1800/1900MHz(2G version)
4G LTE bands	Latin-US version:LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 Asia version: LTE-FDD: B1/B3/B5/B8/ LTE-TDD: B34/B38/B39/B40/B41
GPRS	Class 12, TCP/IP
Memory	32 + 32 Mb
Phase error	RMSPE<5,PPE<20
Max output	GSM850/GSM900:33±3dBm ,GSM1800/GSM1900:30±3dBm
Max frequency error	±0.1ppm
Receive sensitivity	Class II RBER2%(-102dBm)
GPS Specification
Chipset	2G MTK6261(GSM)+AT6558R(GPS) 4G SIMCom LTE Cat 1 A7670 Series+AT6558R(GPS)
Frequency	GPS L1, 1575.42 MHz C/A code
Channel	66
Location accuracy	<10 meters
Tracking sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start ≤1sec
TTFF (open sky)	Avg. cold start≤32sec
Others
Antenna	Built-in quad band GSM antenna, GPS ceramic antenna
Charging voltage	5VDC
Working current	10uA~65mA
Battery	rechargeable 3000mAh/5000mAh/10000mah Lithium battery
Standby	1~90 days depends on activities
Operating temperature	-20℃~+70℃

- SMS Command List

SMS Function	SMS Command format	SMS example
★ Please don’t type “+” “space”, password 123456 ★ Preset Center Number first before testing SMS or Phone Call alarm mode. ★ Each SMS must reply“OK” represent command successfully.
Set IP Port	adminip+password+space+IP Address+space+port number	adminip123456 www.gps2828.com 7018
Set APN	apn123456+space+LocalApn+space+ApnName+space+ApnPassword	apn123456 internet
Set fall-off alarm	remove123456+space+1	remove123456 1
Cancel fall-off alarm	remove123456+space+0	remove123456 0
Set Time Interval	ITV123456+space+time interval(s)	If 60s , send SMS: ITV123456 60
Set center number	centernum123456+space+phone number	centernum123456 13712345678 no need put country code
Cancel center number	centernum123456
Set low battery alarm	lowbat123456+space+1	lowbat123456 1
Cancel low battery	lowbat123456+space+0	lowbat123456 0
Set SMS time zone	*timezone123456+space+(timezone60)**	If+5.5:timezone123456 330
Check device status	check123456	check GPS GSM status
Set alarm mode	KC123456+space+1	APP alarm (default)
	KC123456+space+2	APP+SMS alarm
	KC123456+space+3	APP+SMS+PhoneCall alarm
Set vibrate alarm	vibrate123456+space+1	Must keep continuously static 3 minutes before vibration
Cancel vibrate alarm	vibrate123456+space+0	Must keep continuously static 3 minutes before vibration
Set Voice listen	Monitor13456
Cancel voice listen	Tracker123456	default
Set factory mode	begin123456	It will erase all setting
