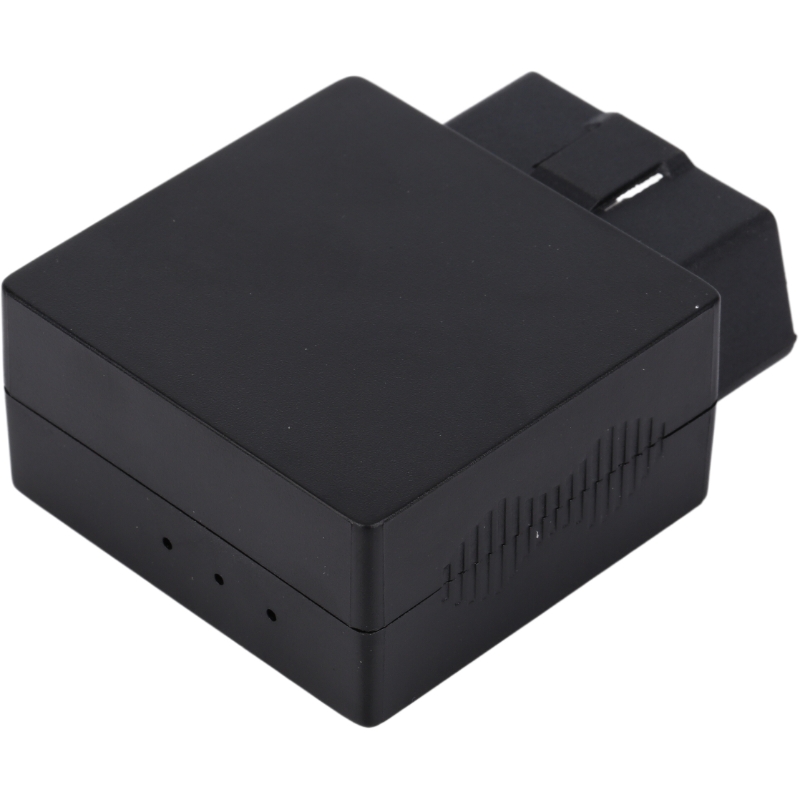

G183 serials is higher level OBD GPS tracker, support OBDII/JOBD/J1939/J1708 protocols.
Also support 2nd-development.
◆Support OBD II /EOBD protocols
◆Support exclusive protocol of Japanese vehicle, Such as MITSUBISHI,HINO,ISUZU
◆Support commercial vehicle protocol,J1939,J1708.
◆50Hz 3-axis accelerator, real time uploading and restore vehicle accident process
◆Fast and precise GPS positioning ,Standard EMC HW(CISPR-25,ISO-7637,ISO-10605)
◆Real time position uploading ( support GPS-America, COMPASS-China, QZSS-Japan, GLONASS-Russia, Galileow-Europe, and these positioning system are optional)
◆Real time car status uploading, such as water temperature ,air intake pressure, RPM, speed, intake air temperature , air flow etc. And these function are optional.
◆Real time Mileage, fuel consumption, trip time uploading
◆Real time car DTCs uploading
◆Real time Alarms uploading: Speeding, Harsh acceleration/deceleration, Quick lane change, Sharp turn, Collision, over speed, low voltage, park w/o flameout, ignition/flameout, towed, Fault indication, Higher temperature, SOS, Dongle plug and unplug etc
◆Data uploading automatically after blind area
◆Remote Debugging function
◆SMS inquiry for car position link
2. Specification
Mechanical Parameter | Dimension | 62mm(Length) x 50mm(Width) x 25mm(Height) |
Weight | 100g | |
Interface | OBD interface: Support A/B Type Configuration interface :Micro-USB SOS Button interface:MMCX | |
Support Diagnostic Protocol | Passenger:ISO15031 and Dedicated protocol of Japanese vehicle TOYOTA,NISSAN,MAZDA,HONDA,MITSUBISHI,SUBARU,SUZUKI,DAIHATSU) Commercial vehicle:J1939,J1708 and Dedicated protocol of MITSUBISHI,HINO,ISUZU | |
Power | Working Voltage | 8-32VDC |
Working current | Max:<120mA@13.8DC,<80mA@27.6VDC Average( sleeping mode):<10mA@12/24VDC | |
Battery | 3.7V/100mAH | |
Positioning system | GPS,QZSS,GLONASS,COMPASS,Galileow,A-GPS( Optional ) | |
GPS Performance(GPS performance) | Receiver Channels:56 reacquisition Sensitivity:-160dBm position accuracy:2.5m CEP Cold Start:30s Hot Start:1s | |
GLONASS Performance(GLONASS performance) | Receiver Channels:56 reacquisition Sensitivity:-156dBm position accuracy:4.0m CEP Cold Start:32s Hot Start:1s | |
Actual Measurement 3D Positioning time | Cold Start:30s~120s Hot Start:3s~15s | |
Mode of data transmission | TCP/SMS | |
2G/3G | 183G(SIM800C): Quad-Band:GSM/GPRS 850/900/1800/1900MHz Certifications:CE,FCC,GCF,TA,ROHS,REACH,CTA,CCC
183W(LISA-U200): Quad-Band:HSPA 800/850/900/1700/1900/2100 MHz, Quad-Band:GPRS/EDGE 850/900/1800/1900MHz Certifications:e4 ,R&TTE,CE,FCC
SIM5360E(SIM5360E): Dual-Band:UMTS/HSPA+ 900/2100MHz Quad-Band:GSM/GPRS/EDGE 850/900/1800/1900MHz Certifications:CE,GCF,ROHS,REACH,CCC,CTA
SIM5320A(SIM5320A): Dual-Band:WCDMA/HSDPA 850/1900MHz Quad-Band:GSM/GPRS/EDGE 850/900/1800/1900MHz Certifications:FCC,PTCRB,IC,ROHS,REACH Carrier Approvals:AT&T,Rogers
SIM5320J(SIM5320J): Dual-Band:UMTS/HSDPA 850(800)/2100MHz Quad-Band:GSM/GPRS/EDGE 850/900/1800/1900MHz Certifications:Telec,JATE Carrier Approvals:Docomo | |
3-axis accelerator | +/-16g | |
Storage | 8M BYTE FLASH | |
Indication light | GPRS/GPS /OBD | |
Buzzer | System state/Alarm indication | |
Antenna | 2G/3G | Built-in |
GPS | Built-in | |
Accessories optional | USB private wire,SOS extended cable | |
Enviromental Parameter | Operating Temperature | -30℃ ~ +70℃(Humidity 80%) |
Humidity | 5%~95%(No Frosting) |
