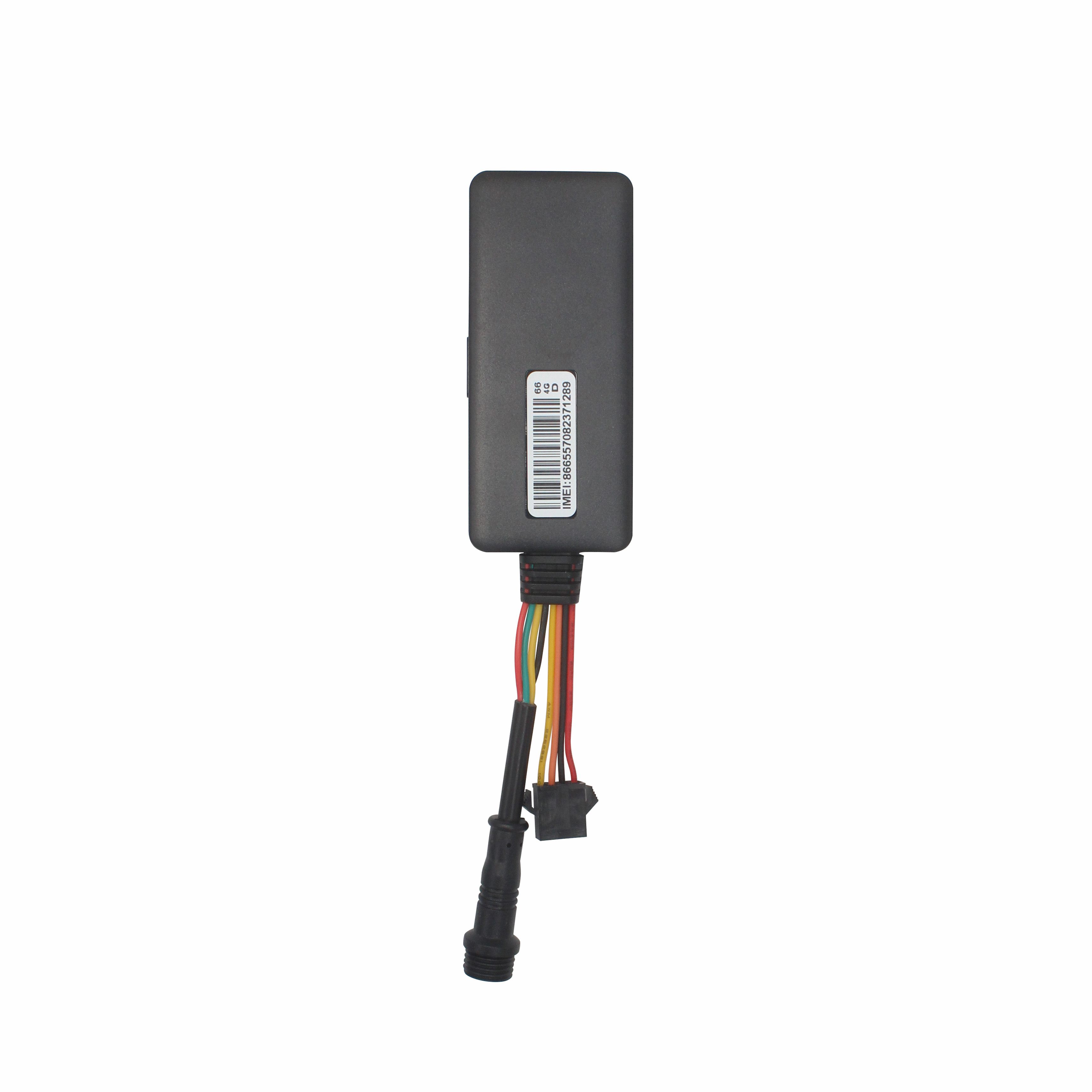

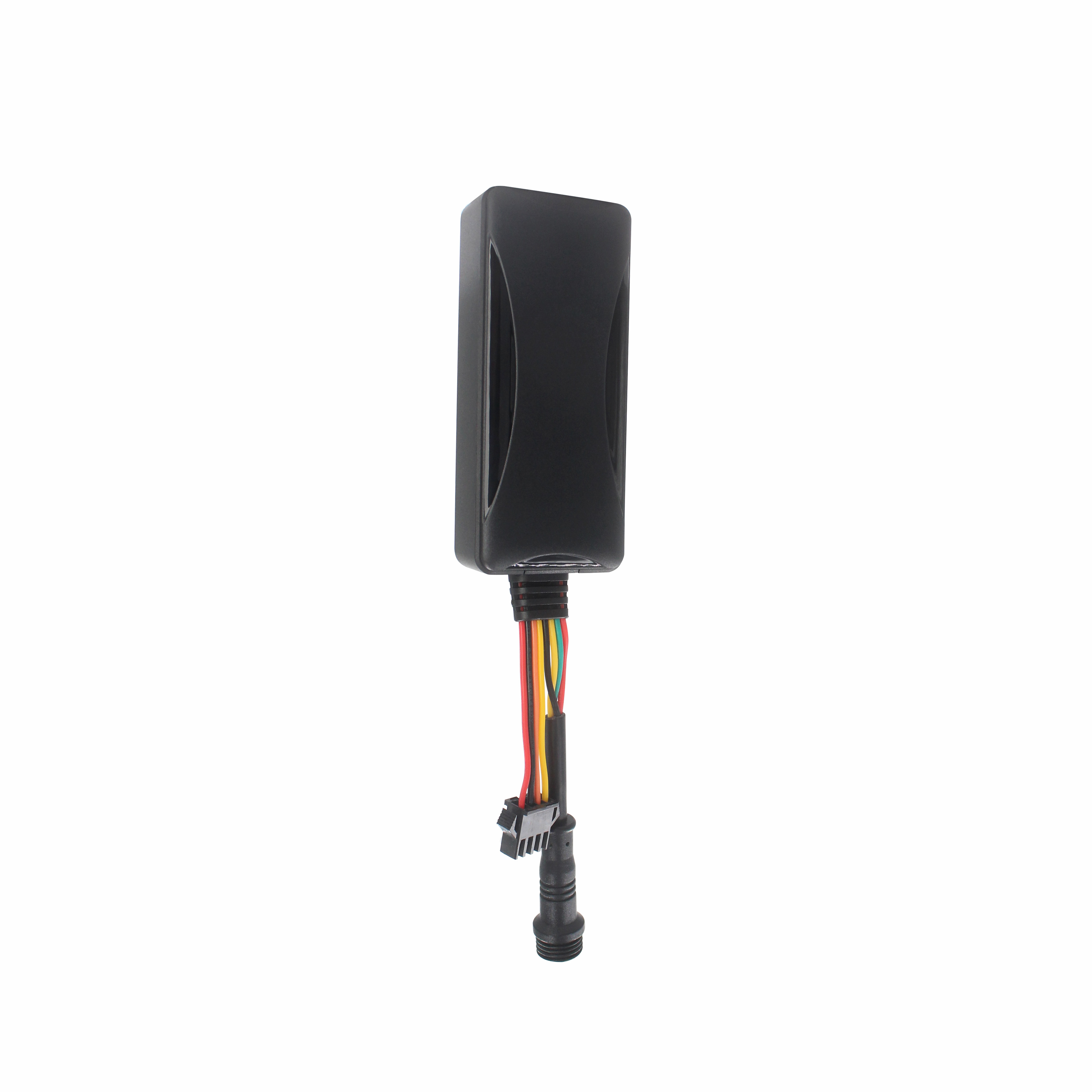

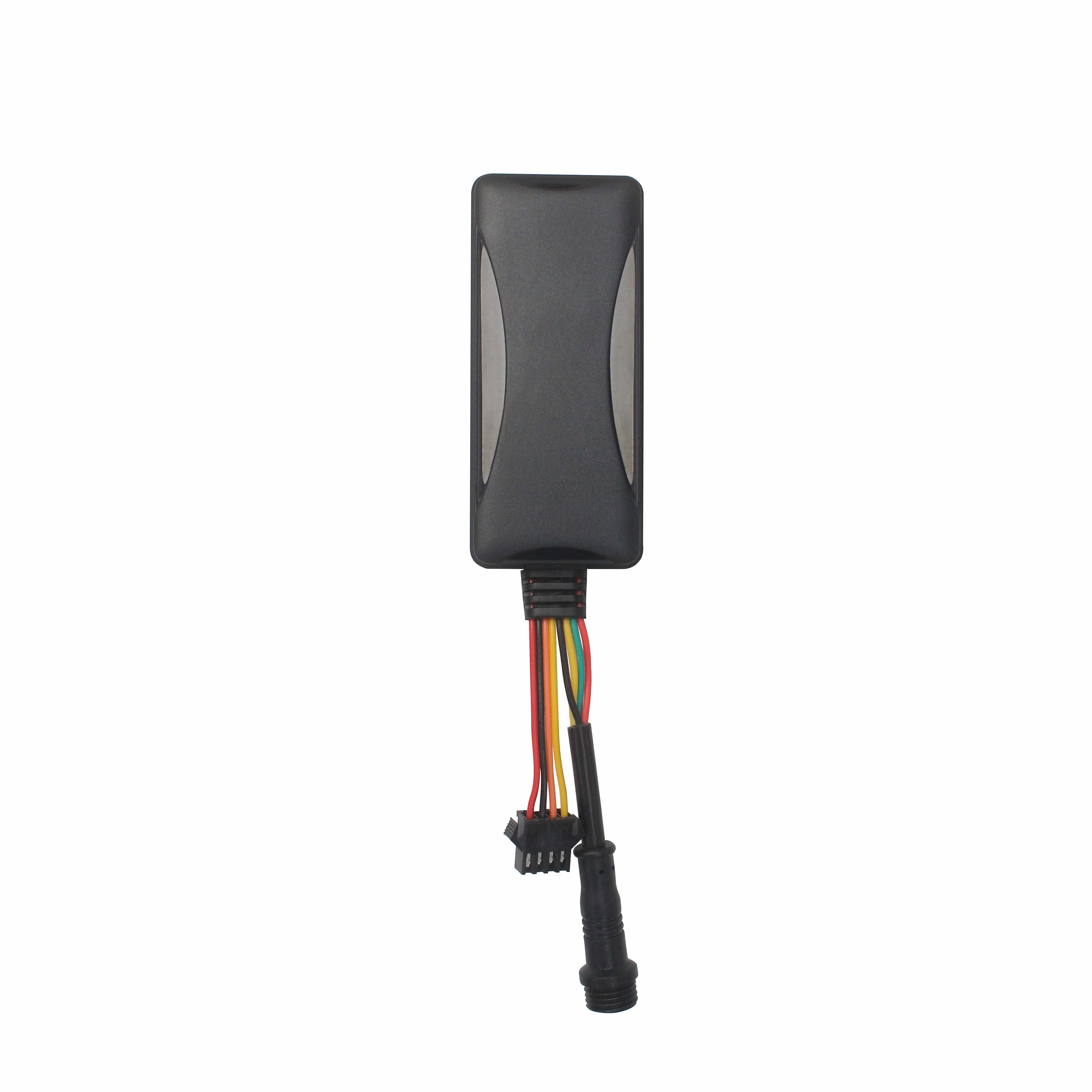

G900LV GPS Tracker for Car Truck GPS with Temperature Sensor Fuel Sensor

G900LV GPS Tracker for Car Truck GPS with Temperature Sensor Fuel Sensor

G900LS is 4G global version car GPS tracker, support 4pin & 8Pin versions for different application.

Main Features

◇ Temperature Sensor

◇ Fuel Sensor

◇ Real-time tracking by APP/Platform

◇ Movement/Ignition on/off alarm

◇ Speeding / ACC detection

◇ Power Cut alarm with internal battery

◇ Angle change update location

Product Application

* Fleet management and vehicle tracking
* Car service shop
* Vehicle insurance
* Motorcycle and electric bike anti-theft
* Working range 9-90V DC

Project Details

Specs.

Content	Specs.
Dim.	793418mm
Network	LTE/GSM/GPRS
LS version Frequency	LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM :850/900/1800/1900Mhz
LC version Frequency	LTE-FDD：B1/B3/B5/B8/ LTE-TDD：B34/B38/B39/B40/B41
GPS channel	66
Tracking sensitivity	-165dBm
Location accuracy	<5 meters CEP
Time To First Fix(open sky)	Cold status <35s Hot status <1s
Working voltage	9-90VDC
GPRS Protocol	Class12, TCP/IP
Operating temp.	-20°C to +70°C
Back up battery	150mAh /3.7V Li-Polymer battery
Standby & Working consumption	5mA~50mA
Protocol	GT06 series protocol

Command List

Function	SMS command list
APN Inquire	APN#
APN set up	APN,cmnet,,#
APN set up	APN,cmnet,aaa,bbb#
Server parameter query	SERVER#
Server parameter settings	SERVER,1,domain,port,0#
Server parameter settings	SERVER,0,IP,port,0#
Address query(domestic)	123
Address query(foreign)	666#
	URL#
	POSITION#
Status query	STATUS#
Version query	VERSION#
Longitude and latitude location query command	WHERE#
Query parameter settings	PARAM#
Restart command	RESET#
Query the oil and electricity control status	RELAY#
Oil and electricity control	RELAY,A#
Oil and electricity control	A=0/1 0 resume fuel 1 cut fuel
Add center number1	CENTER,A,center number#
Add center number1	CENTER,A,center number#
Delete center number1	CENTER,D#
Add center number2	CENTER,A2,center number#
Add center number2	CENTER,A2,center number#
Delete center number2	CENTER,D2#
Add center number3	CENTER,A3,center number#
Add center number3	CENTER,A3,center number#
Delete center number3	CENTER,D2#
Inquiry center number	CENTER#



set up GPS Data scheduled sending interval	TIMER,T1,T2#
	T1=5～60 seconds；ACC ON status upload interval
	T2=5～1800seconds；ACC OFF status upload interval
Inquire GPSData scheduled sending interval	TIMER#
Inquire SENSORcontrol GPStime	SENDS#
Turn on vibration alarm settings	SENALM,A,M#
	A=ON
	M=0～2；alarm mode,
	0 for GPRS,1 SMS+GPRS,2 GPRS+SMS+CALL；
Turn off vibration alarm	SENALM,OFF#
Query vibration alarm setting parameters	SENALM#
Enable power outage alarm settings	POWERALM,A,M,T1,T2,#
	A=ON
	M=0～2；0 for GPRS,1 SMS+GPRS,2 GPRS+SMS+CALL

	T1=2～60seconds; power failure detection time T2=1-3600seconds minimum charging time
Turn off power outage alarm	POWERALM,OFF#
Query the power outage alarm status	POWERALM#
Turn on ACCIgnition alarm	ACCALM,A,M#
	A=ON
	M=0～3
	0 ：for GPRS,
	1 ：GPRS+SMS,
	2 ：GPRS+CALL,
	3 ：GPRS+SMS+CALL
Close ACC Ignition alarm	ACCALM,OFF#
Inquire ACC Ignition alarm	ACCALM#
turn on ACC off alarm	ACCOFFALM,A,M#
	A=ON
	M=0～3
	0 ：for GPRS,
	1 ：GPRS+SMS,
	2 ：GPRS+CALL,
	3 ：GPRS+SMS+CALL
Close ACC off alarm	ACCOFFALM,OFF#
Inquire ACC off alarm	ACCOFFALM#
Set sleep mode	SZCS#SLPDISCONNECT=A




Query the sleep working mode	CXCS#SLPDISCONNECT
SMS time zone setting	GMT,A,B,C#




SMS time zone query	GMT#
GPRS Time zone settings	SZCS#GT06GPRSGMT=A




GPRS Time zone query	CXCS#GT06GPRSGMT
