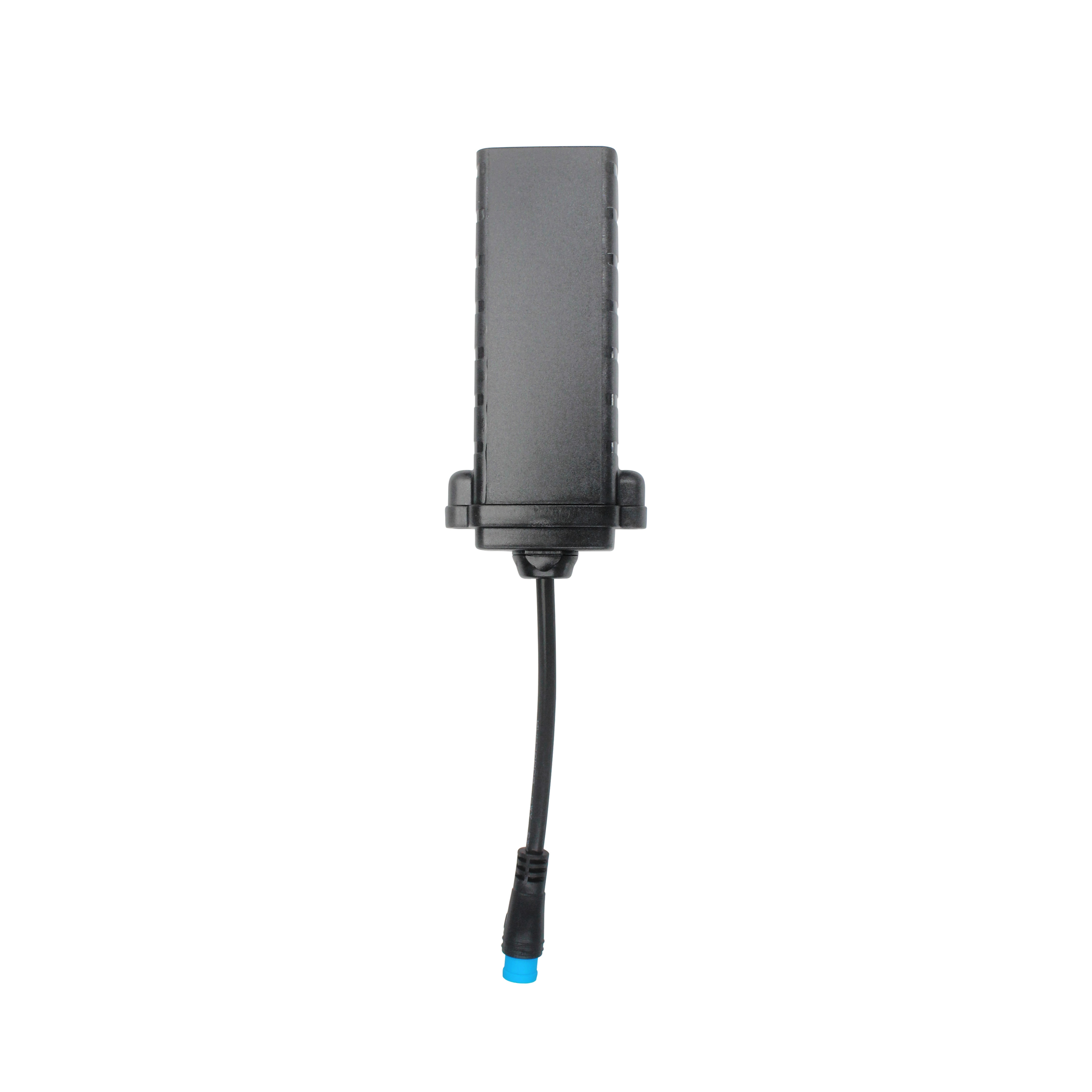

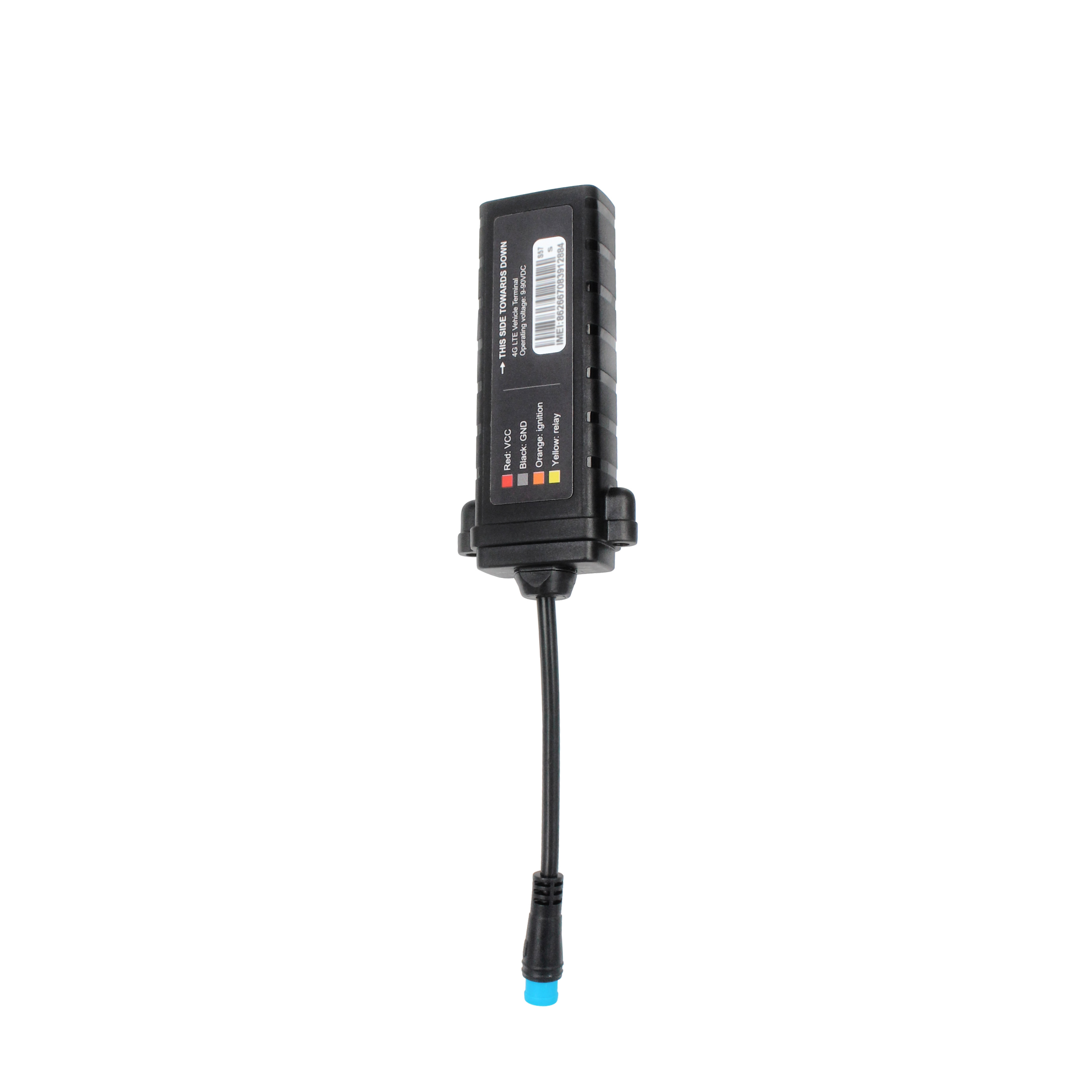

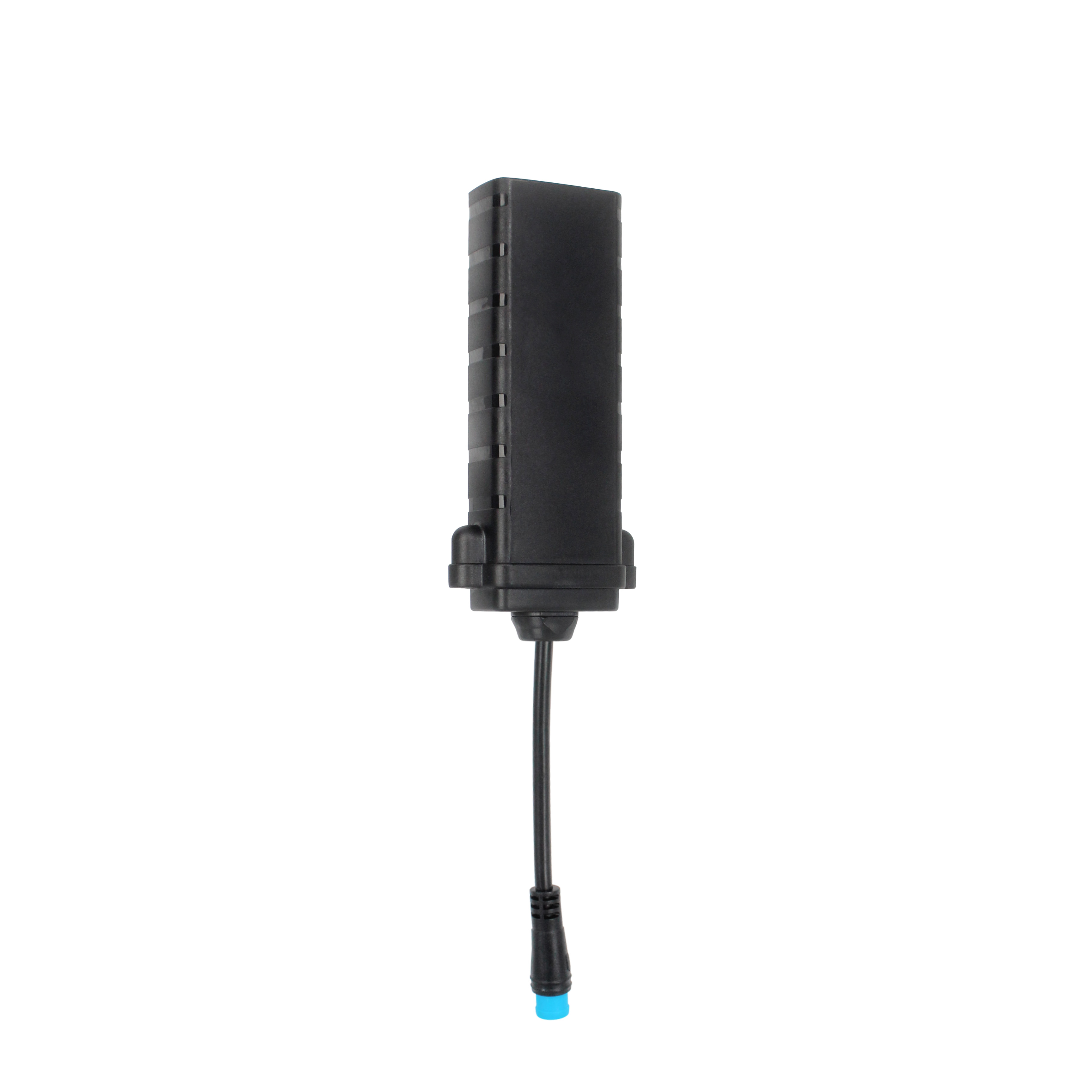

G900P IP67 Waterproof Vehicle GPS Tracker

G900P IP67 Waterproof Vehicle GPS Tracker

G900LS is 4G IP67 Waterproof Vehicle GPS Tracker, support 4pin versions

Main Features

◇ Real-time tracking by APP/Platform

◇ Movement/Ignition on/off alarm

◇ Speeding / ACC detection

◇ Power Cut alarm with internal battery

◇ Angle change update location

Product Application

* Fleet management and vehicle tracking
* Car service shop
* Vehicle insurance
* Motorcycle and electric bike anti-theft
* Working range 9-90V DC

Project Details

Specs.

Content	Specs.
Dim.	954218mm
Network	LTE/GSM/GPRS
LS version Frequency	LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B34/B38/B39/B40/B41 GSM :850/900/1800/1900Mhz
LC version Frequency	LTE-FDD：B1/B3/B5/B8/ LTE-TDD：B34/B38/B39/B40/B41
GPS channel	66
Tracking sensitivity	-165dBm
Location accuracy	<5 meters CEP
Time To First Fix(open sky)	Cold status <35s Hot status <1s
Working voltage	9-90VDC
GPRS Protocol	Class12, TCP/IP
Operating temp.	-20°C to +70°C
Back up battery	150mAh /3.7V Li-Polymer battery
Standby & Working consumption	5mA~50mA
Protocol	GT06 series protocol

Command List

Function	SMS command list
APN Inquire	APN#
APN set up	APN,cmnet,,#
APN set up	APN,cmnet,aaa,bbb#
Server parameter query	SERVER#
Server parameter settings	SERVER,1,domain,port,0#
Server parameter settings	SERVER,0,IP,port,0#
Address query(domestic)	123
Address query(foreign)	666#
	URL#
	POSITION#
Status query	STATUS#
Version query	VERSION#
Longitude and latitude location query command	WHERE#
Query parameter settings	PARAM#
Restart command	RESET#
Query the oil and electricity control status	RELAY#
Oil and electricity control	RELAY,A#
Oil and electricity control	A=0/1 0 resume fuel 1 cut fuel
Add center number1	CENTER,A,center number#
Add center number1	CENTER,A,center number#
Delete center number1	CENTER,D#
Add center number2	CENTER,A2,center number#
Add center number2	CENTER,A2,center number#
Delete center number2	CENTER,D2#
Add center number3	CENTER,A3,center number#
Add center number3	CENTER,A3,center number#
Delete center number3	CENTER,D2#
Inquiry center number	CENTER#



set up GPS Data scheduled sending interval	TIMER,T1,T2#
	T1=5～60 seconds；ACC ON status upload interval
	T2=5～1800seconds；ACC OFF status upload interval
Inquire GPSData scheduled sending interval	TIMER#
Inquire SENSORcontrol GPStime	SENDS#
Turn on vibration alarm settings	SENALM,A,M#
	A=ON
	M=0～2；alarm mode,
	0 for GPRS,1 SMS+GPRS,2 GPRS+SMS+CALL；
Turn off vibration alarm	SENALM,OFF#
Query vibration alarm setting parameters	SENALM#
Enable power outage alarm settings	POWERALM,A,M,T1,T2,#
	A=ON
	M=0～2；0 for GPRS,1 SMS+GPRS,2 GPRS+SMS+CALL

	T1=2～60seconds; power failure detection time T2=1-3600seconds minimum charging time
Turn off power outage alarm	POWERALM,OFF#
Query the power outage alarm status	POWERALM#
Turn on ACCIgnition alarm	ACCALM,A,M#
	A=ON
	M=0～3
	0 ：for GPRS,
	1 ：GPRS+SMS,
	2 ：GPRS+CALL,
	3 ：GPRS+SMS+CALL
Close ACC Ignition alarm	ACCALM,OFF#
Inquire ACC Ignition alarm	ACCALM#
turn on ACC off alarm	ACCOFFALM,A,M#
	A=ON
	M=0～3
	0 ：for GPRS,
	1 ：GPRS+SMS,
	2 ：GPRS+CALL,
	3 ：GPRS+SMS+CALL
Close ACC off alarm	ACCOFFALM,OFF#
Inquire ACC off alarm	ACCOFFALM#
Set sleep mode	SZCS#SLPDISCONNECT=A




Query the sleep working mode	CXCS#SLPDISCONNECT
SMS time zone setting	GMT,A,B,C#




SMS time zone query	GMT#
GPRS Time zone settings	SZCS#GT06GPRSGMT=A




GPRS Time zone query	CXCS#GT06GPRSGMT
